SetVal

This command allows to change a lot of properties of the licence file and modules.

This command can be blocked for security reasons either in the licence file template template with the value AllowSetVal Set <AllowSetVal>No</AllowSetVall>

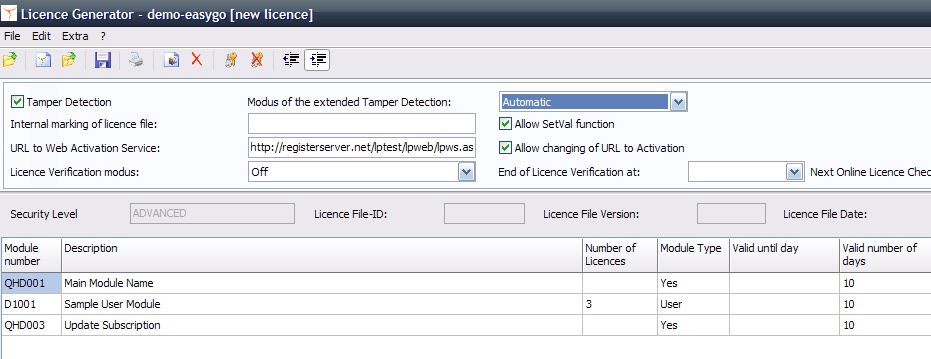

or within the Licence Generator. To read the values use GetVal.

Name

SetVal

Purpose

Sets values in modules or the licence file

Params

Parameter	Type	Example	Note
ModuleID	String	D1001	Unique ModuleID – identifies the module to be tested. If empty the call is supposed to set a value from the licence file
Token	String	TLI	The token. See token list
Value	String	200	The value as a string

Returncode

Returncode Type Integer	Note
0	The module or licence was successfully changed
4101	One or more parameters are invalid, perhaps the token is unknown or the Value could not be converted to the required type
4099	This module type does not exists
4102	There are no LicenceProtector licences to accept this change
All other values – see return codes	The operation was not successful

Usage

Alters a module or change values in the licence.

Sample

iRes := lic.GetVal(‘D1001’, ‘TLI’, ‘200’);

<< the total licences of module D1001 are set to 200 >>

...
